Louvres (Altair)

High Preforming Louvre

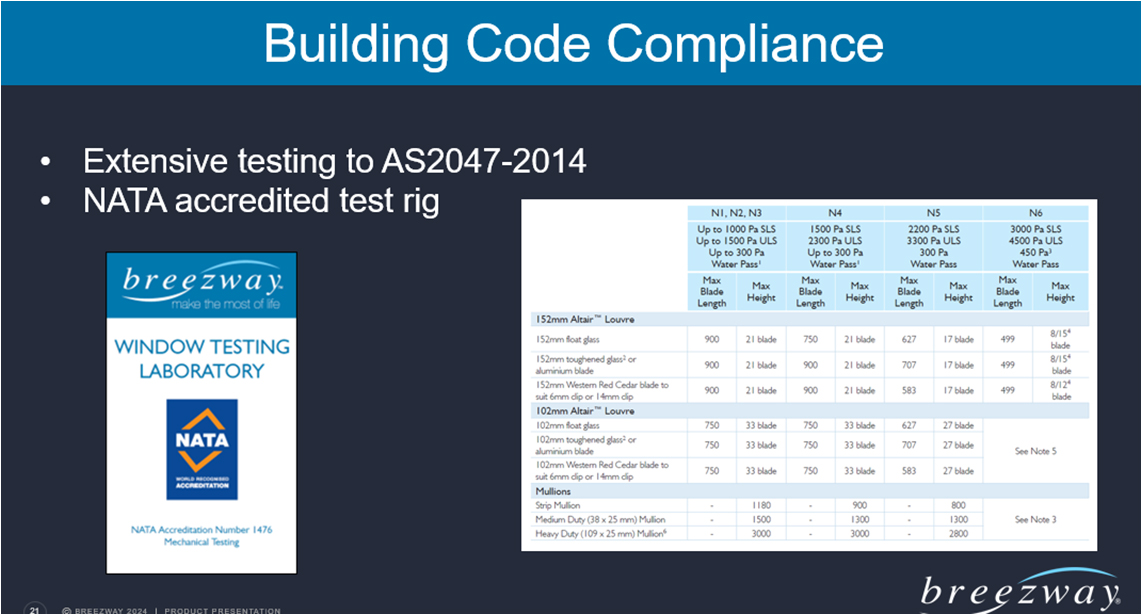

  • Building Code Compliance - AS2047-2014
  • NATA Accredited Test Rig

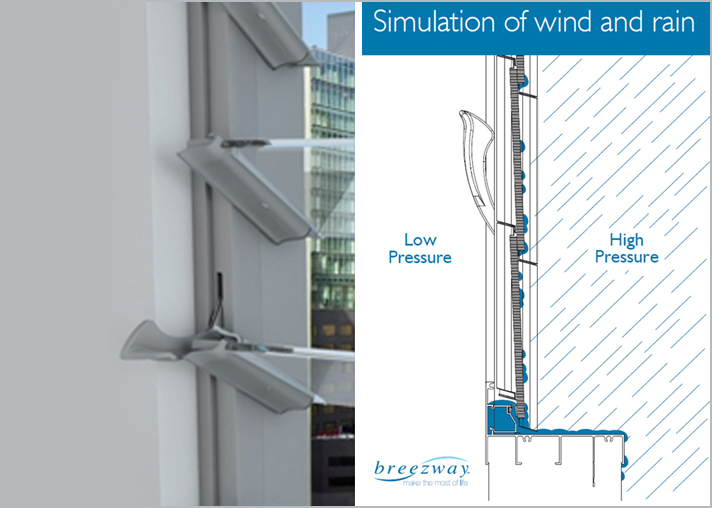

  • Superior wind and water ratings
  • Efficiently captures natural, cooling breezes
  • Manufactured from corrosion resistant materials
  • Assembled to your specification
  • Available in fully integrated window system
  • Unmatched Sealing & Durability
  • Innovative Drainage
  • Warranty-Backed Peace of Mind
  • Customisation & Versatility, Wood-grain or custom-colour aluminium frames, exclusive louvre finishes/colours, plus built-in fly screen options—tailored to elevate modern, tropical, or heritage projects without compromise.

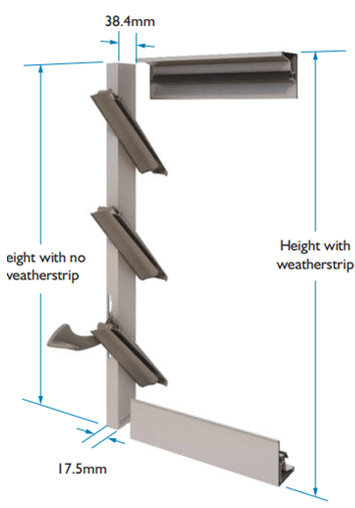

Altair Louvre Height Chart

Heights for 152mm Blade Louvre Gallery
No. of Blades Heights(mm) No Weatherstrip Heights(mm) with Weatherstrip
2 320 330
3 460 470
4 600 610
5 740 750
6 880 890
7 1020 1030
8 1160 1170
9 1300 1310
10 1440 1450
11 1580 1590
12 1720 1730
Heights for 102mm Blade Louvre Gallery
No. of Blades Heights(mm) No Weatherstrip Heights(mm) with Weatherstrip
3 310 320
4 400 410
5 490 500
6 580 590
7 670 680
8 760 770
9 850 860
10 940 950
11 1030 1040
12 1120 1130
13 1210 1220
14 1300 1310
15 1390 1400
16 1480 1490
17 1570 1580
18 1660 1670
19 1750 1760
20 1840 1850
21 1930 1940
22 2020 2030
